Palo Alto Virtual System (vsys)



Virtual systems are supported on PAN-OS 11.1.3 and later releases VM-Series firewalls,PA-400 Series (PA-440, PA-445, PA-450, PA-455, and PA-460 only), PA-1400 Series, PA-3200 Series, PA-3400 Series, PA-5200 Series, PA-5400 Series, and PA-7000 Series firewalls.

Virtual Systems license is required

To activate vSYS, VM needs FLEX-VM license and 16 vCPU

1. Request Software NGFW Credit evaluation.

2. When receive Activation email, click "Active" in the email.

3. Follow the link, add the credit to correct PA support account.

4. Create deployment profile, set FW VM number, vCPU number, vSYS number etc...

5. Deploy a new PA VM with 24G RAM and 16 vCPU (Tier 3), complete basic configure so management interface can reach Internet

6. In CSP credit page, client "detail" button

6. Click the three dot at far right, click "Register Firewall", copy the "Authorization Code"

7. In PA VM license page, click "Activate features using  Authorization Code"

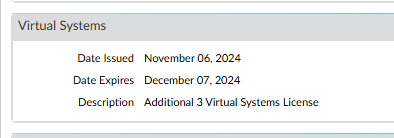

8. After system reload, verify vSYS license

9. Enable vSYS in setup.

If VM doesn't have Tire3 or above CPU/RAM, will get the following error

10. No reboot is required, verify Virtual Systems, Access Domain and Shared Gateway are available now.

Configuration

1. Create vsys
      ID
      name

2. Create zones
    assign zone to a vsys

3. Configure interface

Scenario 1: shared default VR "default"

a. add static route

vsys A can't talk to vsys B even they are using the same default CR.

To allow vsys A  talk to vsys B

1. configure the vsys visible to each other

2. Create External zone for each vsys, add available visible vsys

     all External zones trust each other

3. Create security rules

    vsys-A trust > vsys-A External

    vsys-B External > vsys-B trust or untrust

Scenario 2: Dedicated VR for each vsys.

1. configure zone visibility and external zone

2. To reach subnet in another VR, use "Next VR" as Next Hop.

Scenario 2: Shared Gateway

   1. Create a shared gateway, a special vsys, which is always visible to other vsys.

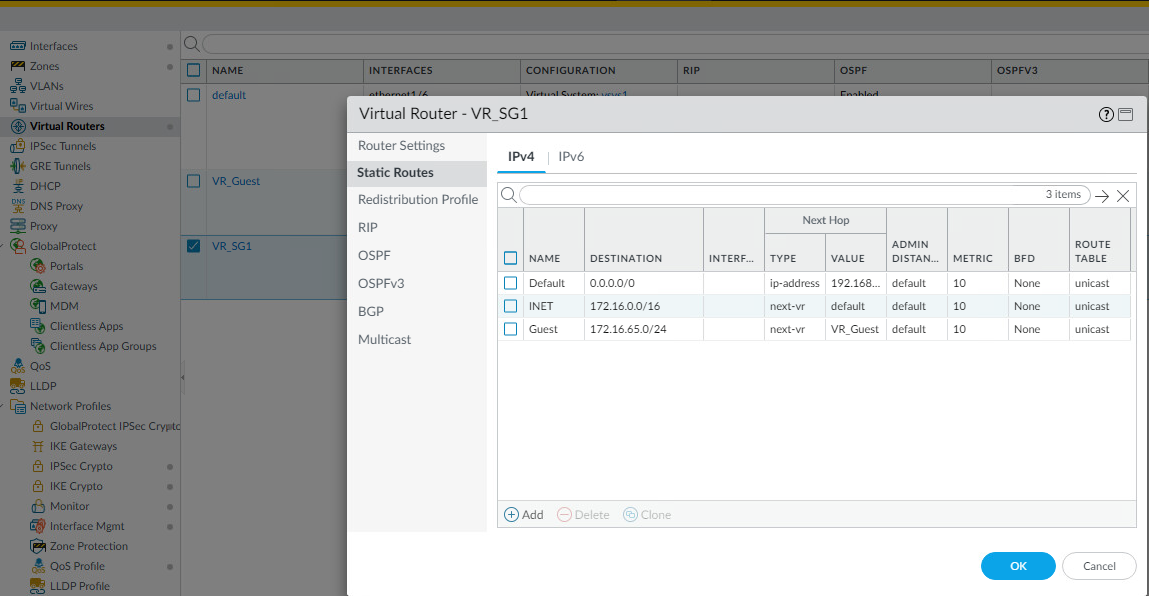

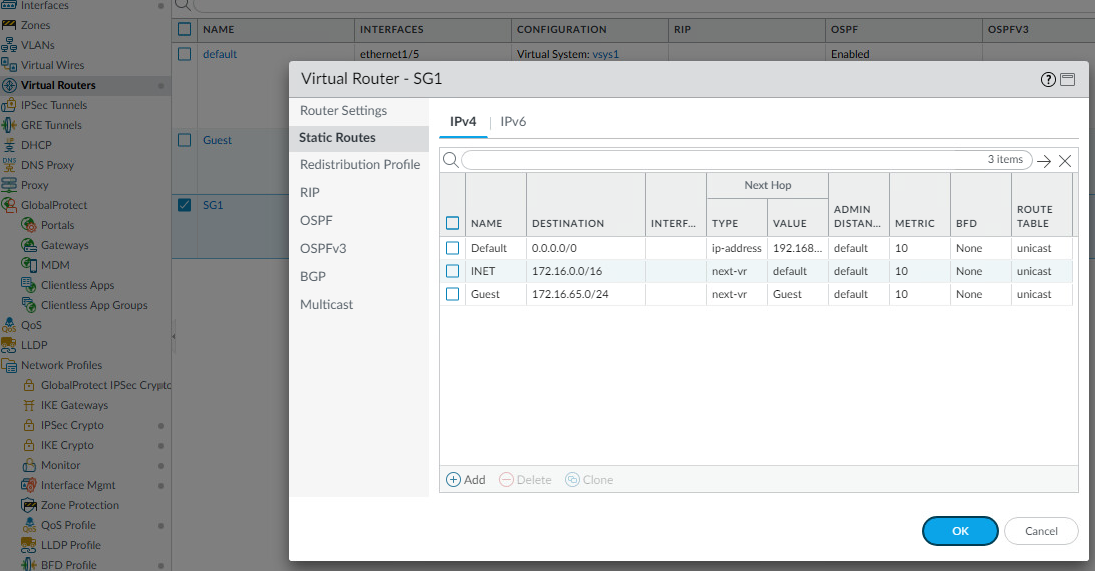

2. Create a new  virtual router VR_SG1, add static routes

3. Edit other vsys, point default route to next VR SG1

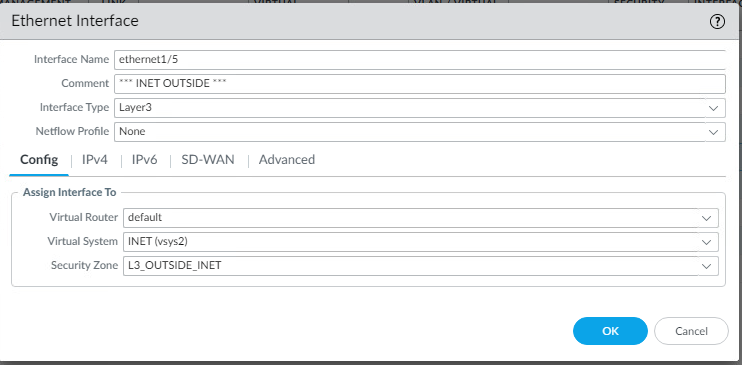

4. Create a new zone for SG, assign interface

5. Create NAT in SG1 shared gateway

remove NAT in other vsys

SG1 policies only have NAT and PBR

For other system to user SG, they need firewall policy to allow destination to their External zone, then be routed to SG
