ASA Palo Alto IKEv2 VPN troubleshooting - Basic

on






ASA buffer logging is at Debugging Level, no debug is enabled

policy-based VPN is configured for host 10.0.10.100 to communicate to host 10.0.20.100


  • when ping trigger VPN from VPC-ASA



No configuration issue, VPN tunnel is up


ASA log:





Palo System log:








Phase I (IKE) parameter mismatch:


ASA log:



Palo System log:




Phase II parameter mismatch


ASA:







Palo:




Pre-shared key mismatch

ASA log:



Palo System Log:



IKE lifetime mismatch, VPN is UP, Palo and ASA firewalls use their local configured IKE lifetime value generating IKE sa.

IPSEC lifetime mismatch, VPN is UP.  Palo and ASA firewalls use their local configured IPSec lifetime value generating IPSec sa

ASA used to have default 1 hour IPSec lifetime, this lab ASA version is 9.16 (4), which has default 8 hours.



Note:

In ASA logs, phase I and Phase II parameter mismatch don't have much difference, except there are more IKE packets are received, from packet capture:

  • phase I mismatch, only two IKE_SA_INIT packets


  • phase II mismatch, two IKE_SA_INIT packets and multiple IKE_SA_Auth packets.



In Palo, phase I and Phase II parameter mismatch have different logs.



  • when ping trigger VPN from VPC-Palo

Phase I parameter mismatch

ASA log:



Palo Log:





Phase II parameter mismatch

ASA log:
    we can see "IKEv2 SA UP", multiple received IKE packets, including IKE_SA_AUTH packets, however, no Error in the log.

Packet captures:

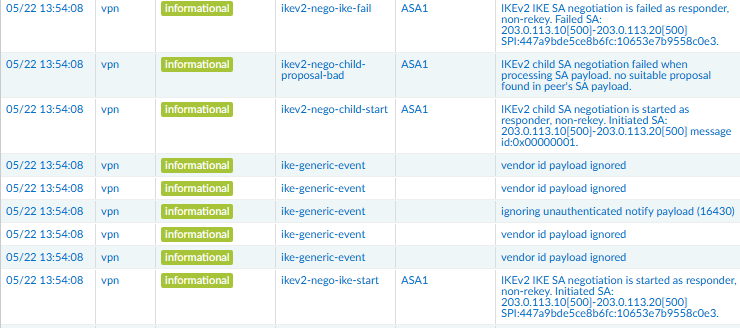

Palo log:

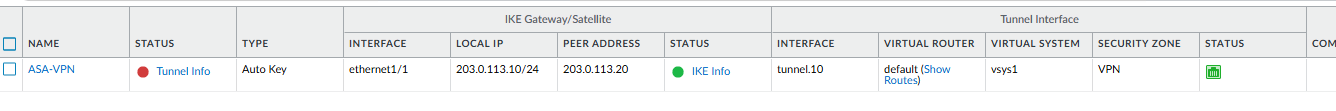

Palo VPN status:


Pre-shared key mismatch

ASA log:

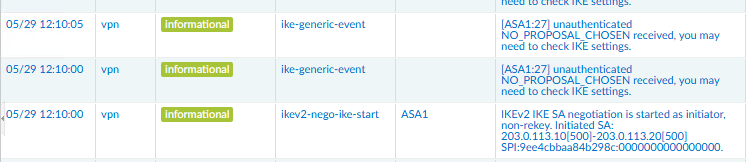

Palo log:





========

IPSec PFS group


When pfs group 20 is configured on both ASA and Palo
group14 is default on ASA.

ASA:



Palo:

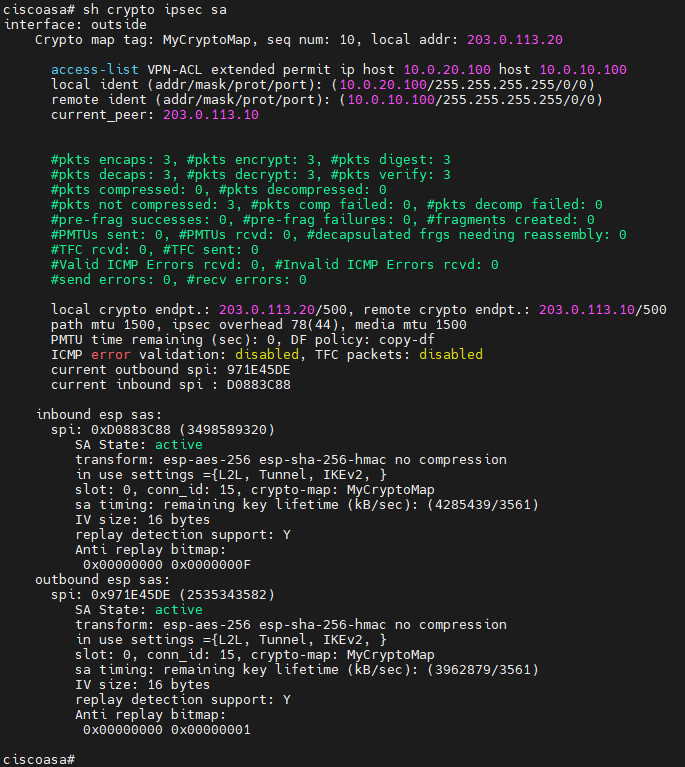

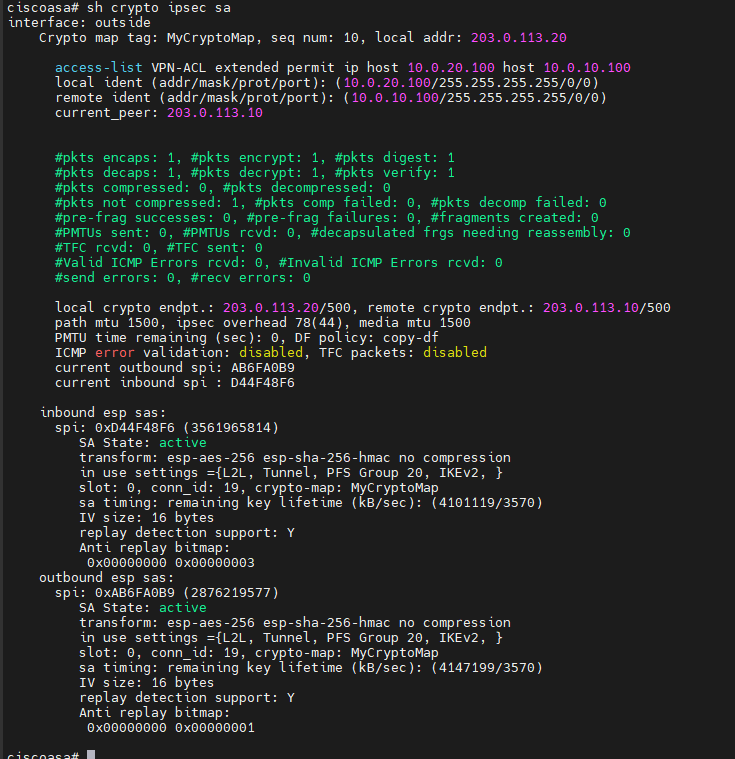

IPSec pfs group can be seen from child sa




When pfs is not configured on ASA, but pfs group20 is configured on Palo, VPN tunnel is up (can be initiated from either ends)



ASA:


Palo:

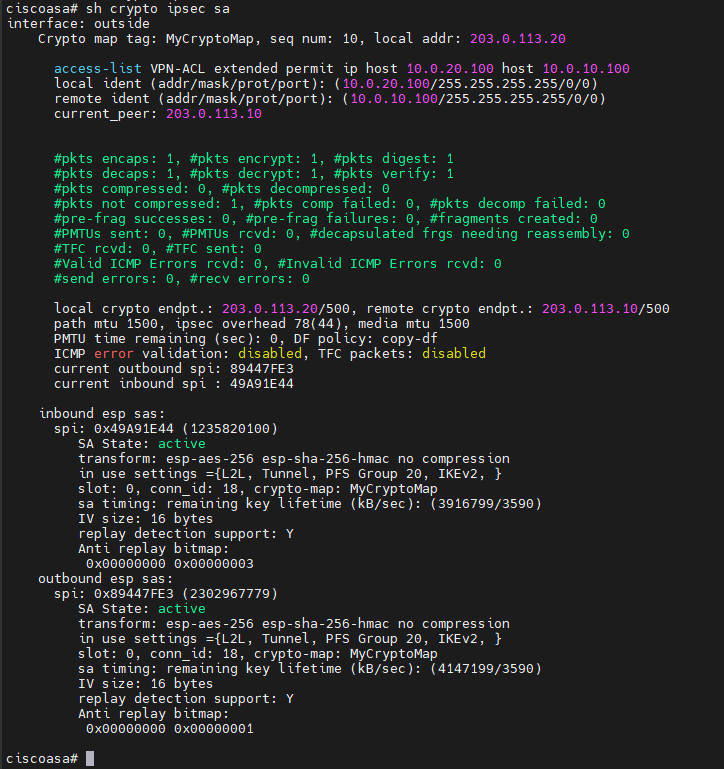

Palo child sa shows group 20




When pfs group 20 is configured on ASA, but no pfs is configured on Palo, VPN tunnel is up  (can be initiated from either ends).

ASA:



Palo:

N/A


When pfs group 20 is configured on ASA, but pfs group14 is configured on Palo, VPN tunnel is up


ASA:


Palo:

N/A


Conclusion:

PFS mismatch is not an issue between Palo and ASA.
