ISE Admin with AD Credential

-

 Summary steps

1. ISE join AD

2. Enable admin access using AD

3. Configure Admin Group to AD group mapping

4. Set RBAC permission for the admin group


Detail Steps:

1. ISE join AD

    Assume is already done, joined corp.local domain
    AD group NetworkAdmins is added to ISE AD group list












2. Enable admin access using AD

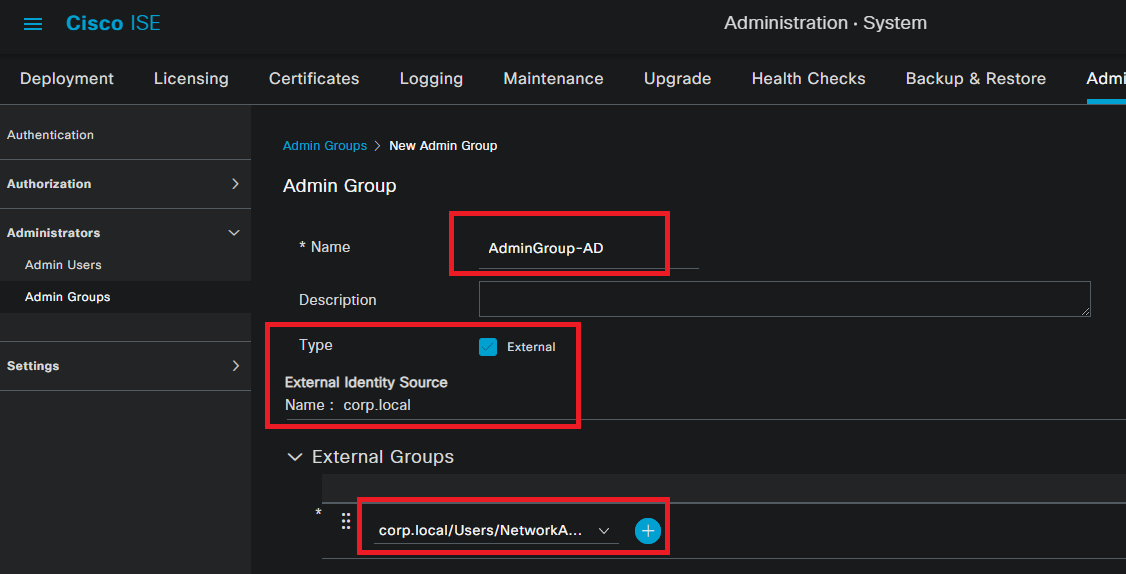

3. Configure Admin Group to AD group mapping

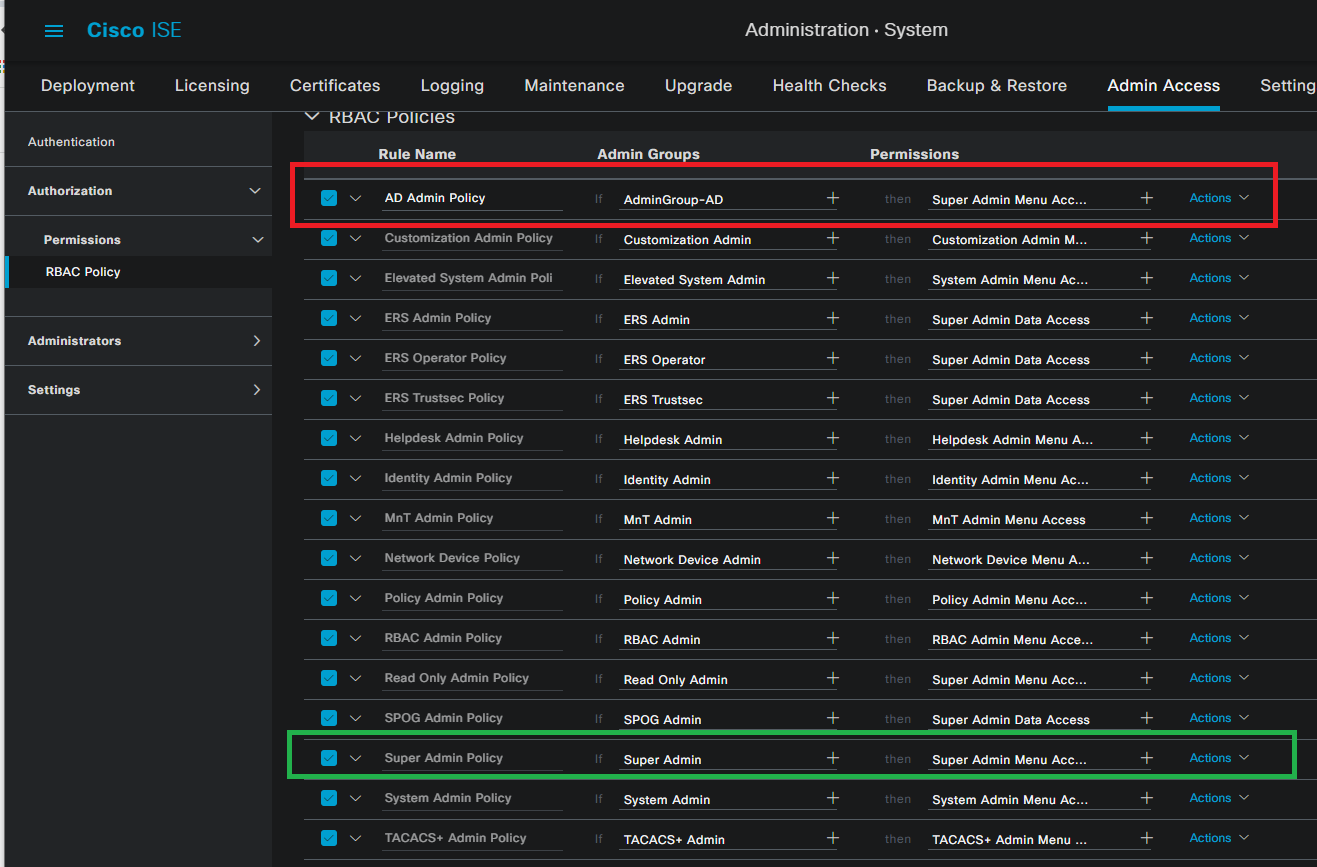

4. Set RBAC permission for the admin group
    Duplicate "Super Admin Policy" , create a new policy "AD Admin Policy" for group "AdminGroup-AD"
















reference:

https://www.cisco.com/c/en/us/support/docs/security/identity-services-engine/116503-configure-product-00.html
